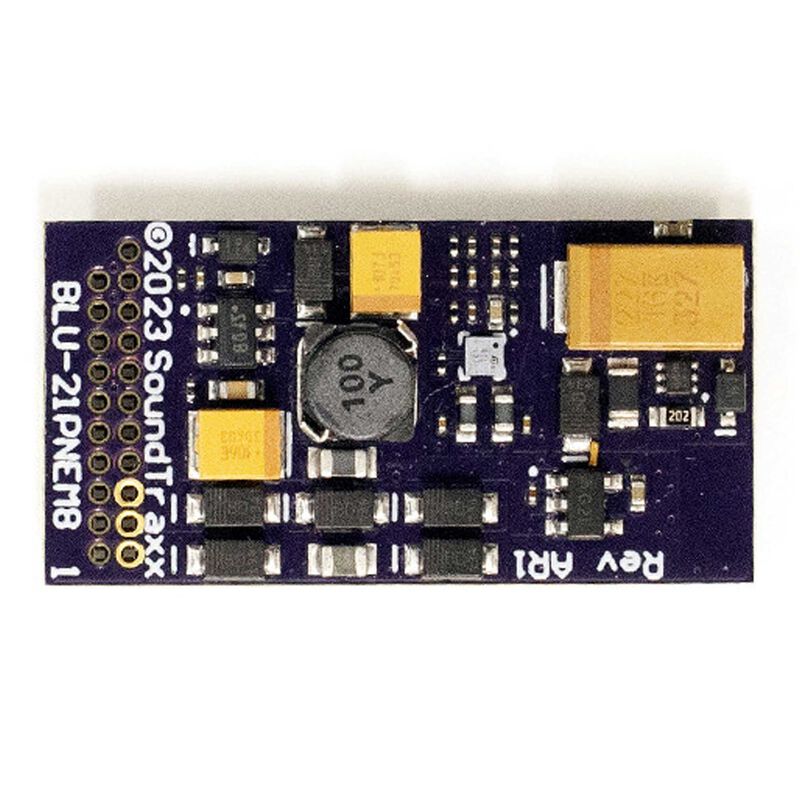

The Blunami BLU-21PNEM8 The BLU-21PNEM8 is a 1-amp Digital Sound Decoder with 8 function outputs. It is designed for easy plug-in operation when mated to a 21-pin NEM connector. You will feel like you are in the cab with the amazing new features that Blunami has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs (10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos, and more!
Need Help Choosing a Sound Profile? SoundTraxx has tons of sounds to match a wide range of locomotives. So many, in fact, they cannot fit them all on one decoder. Therefore, they are broken up into sound profiles of like sounds (Steam, EMD, GE, Electric, etc.). If you don't know which sound profile you need, the best place to start is the Sound Selection References. These will list all the prime movers or exhaust chuffs available on each sound profile. If you need further assistance explore these links:
Decoder Selector: Tells you which board format and part number you need for specific models.
Sound Samples: Hear our sounds in action!
Choosing the Right Sound System: If you are new to SoundTraxx, model railroading, or are unfamiliar with our products.
Sound Selection References: There are several for each decoder and they can be found below or in the Manuals section of our website.
DYNAMIC DIGITAL EXHAUST For added realism, you’ll love our reactive Dynamic Digital Exhaust (DDE) feature. When your locomotive is traveling across flat terrain and simply maintaining speed, you will hear your locomotive chugging along. But, when the locomotive encounters a grade and the engineer applies more throttle to get the train up the hill, the engine sounds will automatically react and reflect the increase of power needed to crest the hill. DDE accomplishes this by calculating the changes in strain or load on the motor and adjusting the exhaust to appropriately simulate the work the engineer would be doing to the throttle of the engine. This gives Tsunami2 the ability to create the most realistic experience possible.
HIGH QUALITY SOUND LIBRARY The large selection of high-quality sound effects include:
10 Exhaust Chuffs
Up to 12 Prime Movers in each sound profile
Up to 12 Bells
90 Whistles
40+ Airhorns
Additional couplers, dynamos, cab chatter and more!
ADDED REALISM Additional realism can be simulated by adding functioning locomotive and train brakes, injectors, power reverse, firebox flicker, and more.
EASY INSTALLATION The BLU-21PNEM8 simply plugs into models equipped with a 21-pin NEM connector.
The BLU-21PNEM8 can be wired to a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches. Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 8
Audio Amplifier: 2 Watt, 8-Ohm Load
DC Track Voltage: 7V - 22V
Sound Channels: 16 Blunami Owner's Manuals: Blunami Installation Guide Blunami Steam User's Guide
Blunami Diesel User's Guide
Blunami Electric User's Guide
*For More information about Sound File Selection: Visit the SoundTraxx Website
SoundTraxx
A true pioneer in the model train industry, SoundTraxx has been creating innovative products for the discriminating model railroader since 1990. They proudly design and manufacture their industry-best products right here in the USA, and their friendly customer support staff work side-by-side with the rest of their product team.
