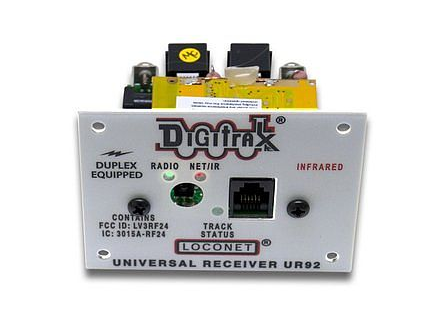

Digitrax 11005 UR92 Duplex Radio Transceiver/IR Receiver Panel

DigitraxSKU: DTX00011005


New Page 1

Product Description

The UR92 is a combo Duplex Radio Transceiver and Infrared Receiver Panel. Using
a UR92 means there is no need to plug in to select your loco when you are using
a Digitrax Duplex equipped "D" throttle. The IR receiver on the UR92 also allows
you to go wireless with your other Digitrax throttles that are factory equipped
with infrared emitters.

Product Features

Plug 'N Play with any LocoNet system

No need to plug in your Duplex equipped throttles, select, dispatch, and program

Duplex Radio operates in the 2.4 Ghz band

Supports Duplex Radio and Infrared operation simultaneously

Range Is Approximately A 300 ft Diameter Circle

Only One UR92 Is Needed To Run Duplex On Most Layouts

Supports Up To 20 Digitrax Duplex Throttles At The Same Time

Group Name Feature Allows Multiple Clubs To Run Independently In Close Proximity
At Train Shows and Exhibitions

Operates In The 2.4 GHz Band

One RJ12 6 pin Throttle jacks in the front of the panel for hooking up throttles
and other LocoNet devices that do not use RailSync.

Two RJ12 6 pin LocoNet jacks in the back of the panel for hooking up LocoNet
devices that use RailSync.

Gives your layout a professionally finished look.

Indicator LED that shows the power state of a local track section.

Two #6-32 right angle screw terminals for local track connections for power and

Includes PS14 power supply
